Features

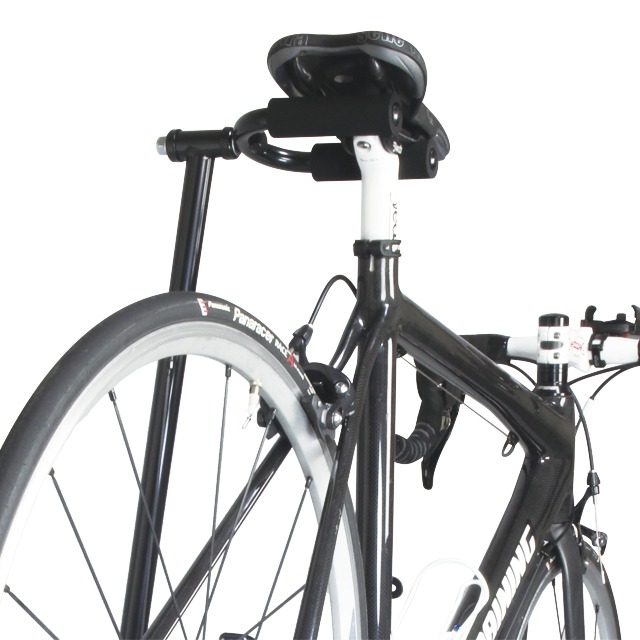

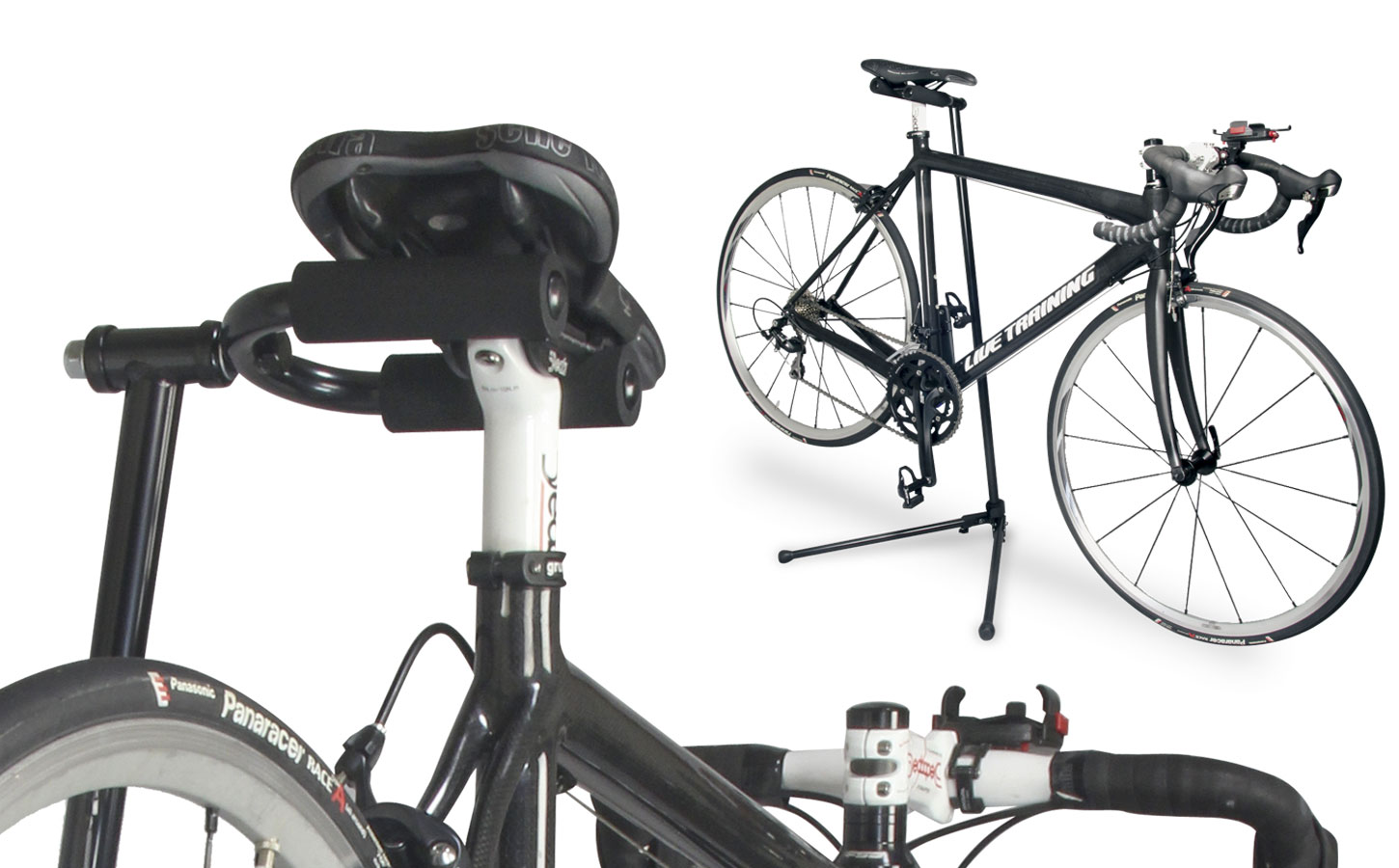

- Simply hook the seat post to the U-shaped pipe.
- Install bike by inserting deeply the seat post to the U-shaped pipe
- Recommend for adjusting or maintaining drive train or rear wheel

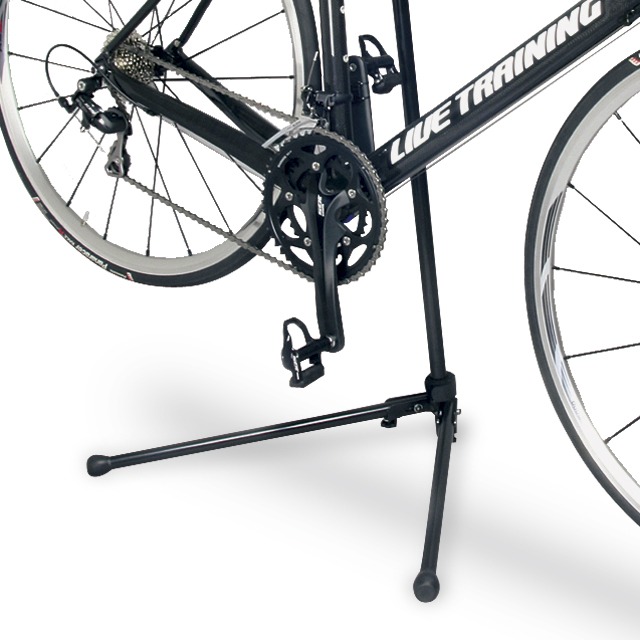

- Easy fold legs with knob bolt.
- Durable stand made from metal
- Front wheels rests on ground
- Rotated U-shaped hook corresponds to various seat angles
- Formed urethane cover protects bike and seat post finish.
-
Capacity
- Will fit most bike designs or sizes however do not use when the seat height is over 1060mm from the floor
- Maximum bike weight capacity is up to 15kg
-
Setup dimensions
- W = 650 mm
- D = 450 mm
- H = 1,050 mm
-
Cautions
- Design for using a light weight sport bikes up to 15kg.
- Remove the tail light, saddle bag from the seat post or saddle before using this stand.
- Do not over tighten the nut on the mount. Bike should not be fully suspended but must have the front wheel touching the ground for stability
- Do not push or press diagonally back. The stand may topple.
- This stand is designed for light maintenance. Do not attempt any heavy work on the bottom bracket or drive train.
- Stand is not recommended for adjustment and maintenance of the front wheel.
